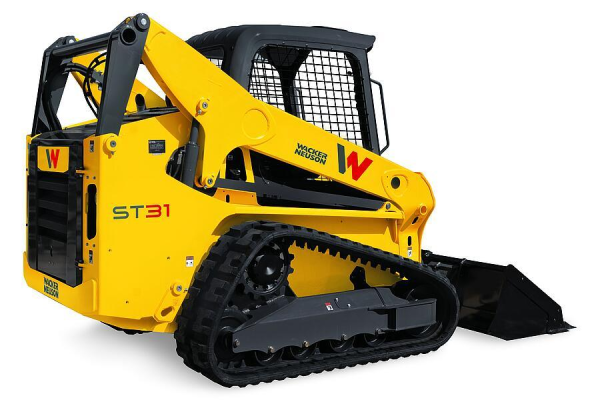

ST31

The ST31 has everything you would expect from a vertical lift track loader. This unit delivers 1406kgs of rated operating capacity at 50% and is a class leader with a lifitng height of over 3 meters.

SKU: 1000340684 Categories: ,

Description

The ST31 has everything you would expect from a vertical lift track loader. This unit delivers 1406kgs of rated operating capacity at 50% and is a class leader with a lifitng height of over 3 meters. Its undercarriage is very maintenance free and provides decreased ground pressure and increasing digging performance due to its class leading “track on ground contact”. It has a travel speed of up to 16km/h making on site transporting easy.

Specifications

  • Operating Weight: 3671kg
  • Length: 2708mm
  • Width: 1704mm
  • Height: 2108mm
  • Bucket Breakout Force: 23.6kN
  • Ground Clearance: 231mm
  • Hinge Pin Max Height: 3188mm
  • Dump Height Max: 2469mm
  • Engine: Kohler KDI 2504 TCR
  • Engine Power: 74hp
  • Hydraulic Flow Standard: 76l/min
  • Hydraulic Flow High: 114l/min
  • Hydraulic Pressure: 3495psi
  • Travel Speed Low: 12.9km/h
  • Travel Speed High: 19.3km/h
  • Warranty: 3 years/3000 hours or 5 years/5000 hours

Optional Accessories

Please Contact us for more information
